Integrating sales, warehousing, processing, distribution, and export, we are dedicated to meeting our customers' steel supply chain needs.

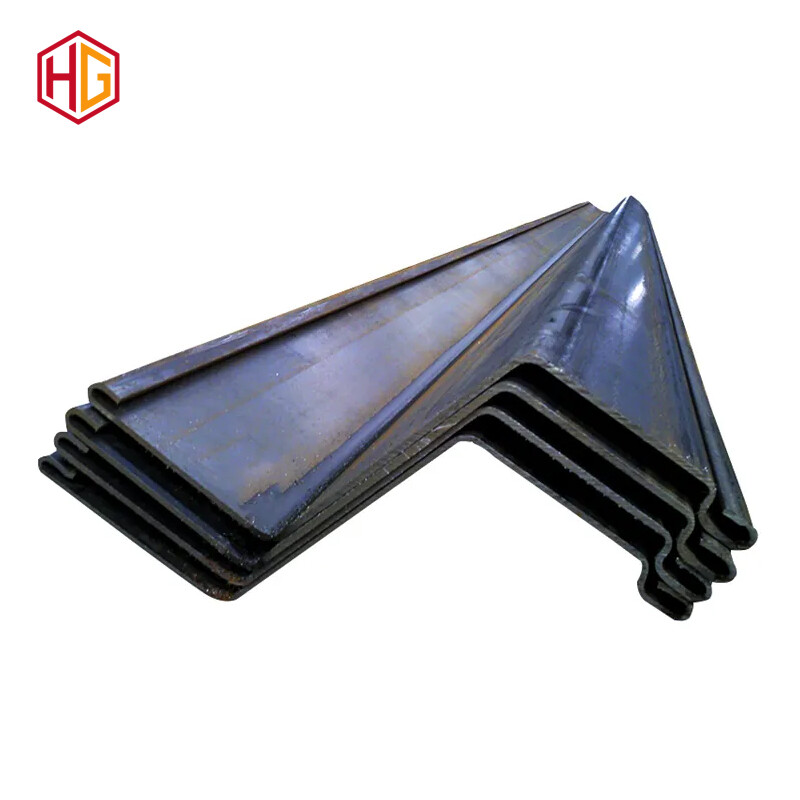

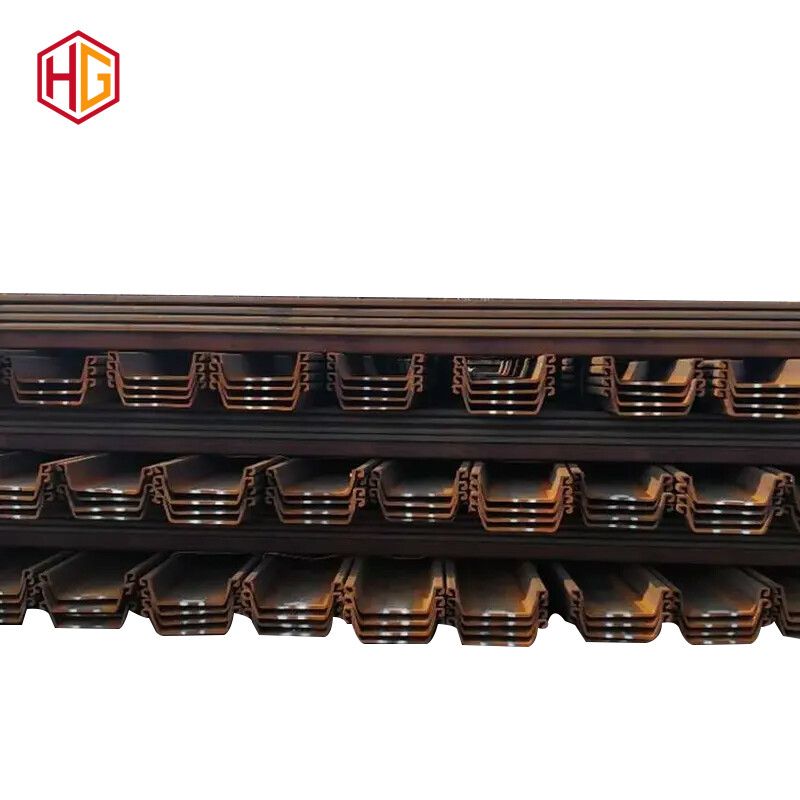

Steel Sheet Pile
1. We can produce all types of sheet piles,pipe piles and accessories,we can adjust our machines to produce in any width x height x thickness .
2. We can produce single length up to over 100m,and we can do all painting,cutting,welding etc fabrications in factory .
3. Fully internationally certified:ISO9001,ISO14001,ISO18001,CE,SGS,BV etc..
WhatsApp: +86 17763515339
Email: sales10@cnhgsteel.com

Product Description

All specifications products can be customized according to customer requirements
Product name sheet pile
StandardAiSi, ASTM, DIN, GB, JISEN10249,EN10248,JIS A 5523 and JIS A 5528,ASTM A328 / ASTM A328M,etc
Steel gradeSGCC/SGCD/SGCE/DX51D/DX52D/S250GD/S280GD/S350GD/G550/SPCC,S275,S355,S390,S430,SY295,SY390,Grade50,Grade55,Grade60,A690,etc
MaterialsQ234B/Q345B JIS A5523/SYW295,JISA5528/SY295,SYW390,SY390 ect.
TechniqueCold formed interlock or clutches
CertificateCE, ISO ,etc
Length9,12, 15 ,20 m as required Max.24m, Any length as customer's request
Width400-750mm as required
Thickness6-25mmas required
ShapeU,Z,L,S,Pan,Flat,hat profiles
PackageBundle in bulk,seaworthy packing or as customer's request
 ApplicationCofferdam /River flood diversion and control/ Water treatment system fence/Flood protection Wall/Protective embankment/Coastal berm/Tunnel cuts and tunnel bunkers/Breakwater/Weir Wall/ Fixed slope/ Baffle wall, etc.
U Type:
Product Model
JU400*100JU400*125JU400*170JU600*180JU600*205JU600*210JU600*226JU750*225
W(mm)
400400400600600600600750
H(mm)
100125125170180205210225
T(mm)
10.51315.513.410181914.6
Single Rootcm²61.1876.4296.99103.991.8135.3145140.6

kg/m486076.181.672.1106.2114110.4

Ix (cm4)1240222046705220643486301128010445

cm³152223362376438539649602
Plate Surface Per Metercm²153191242.5173.2153225.5241.7187.5

Kg/cm²120.1149.9190.4136120.1177190147.2

cm4874016800386003240034645567007232056301

cm³8741340227018001690270032002502

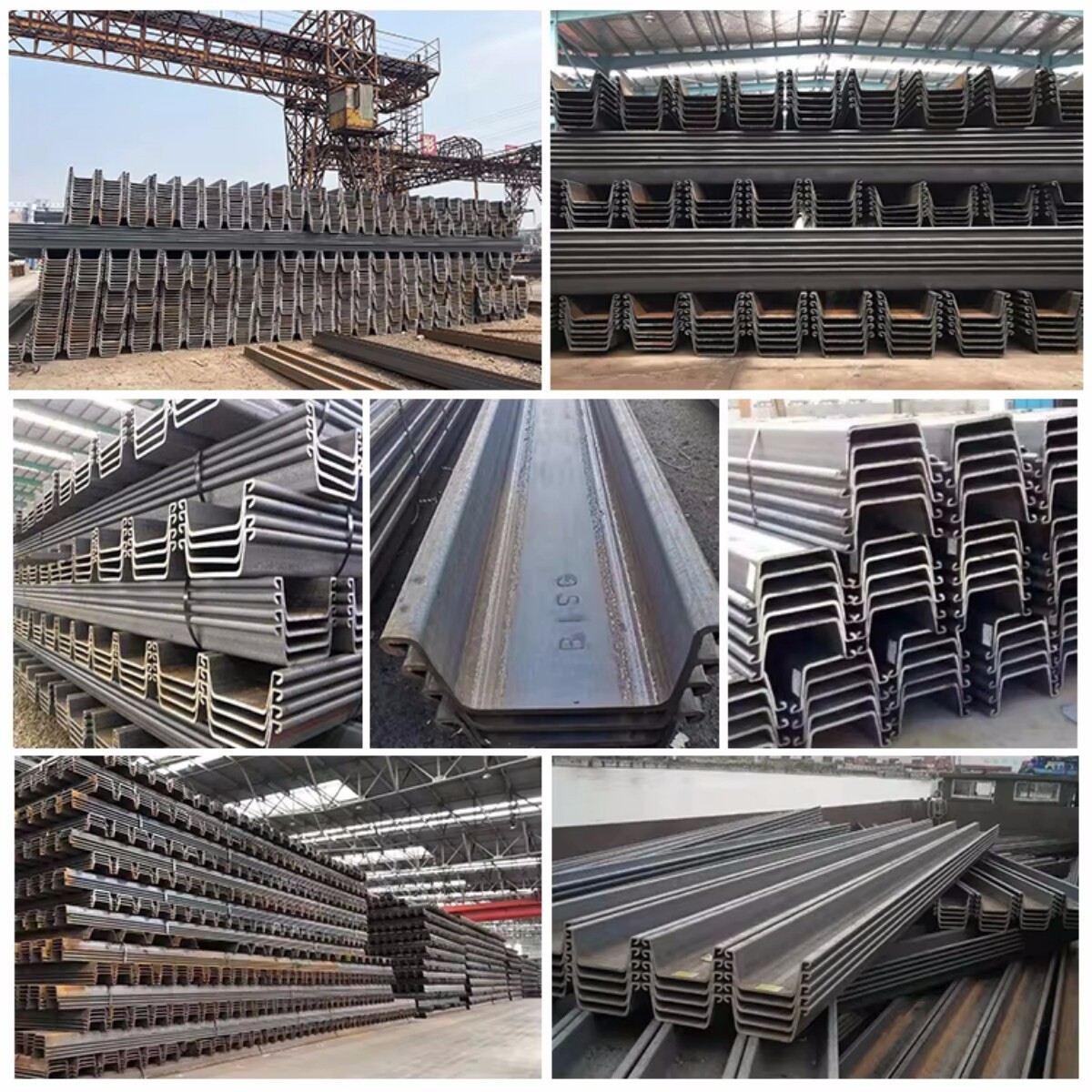

Product Show
