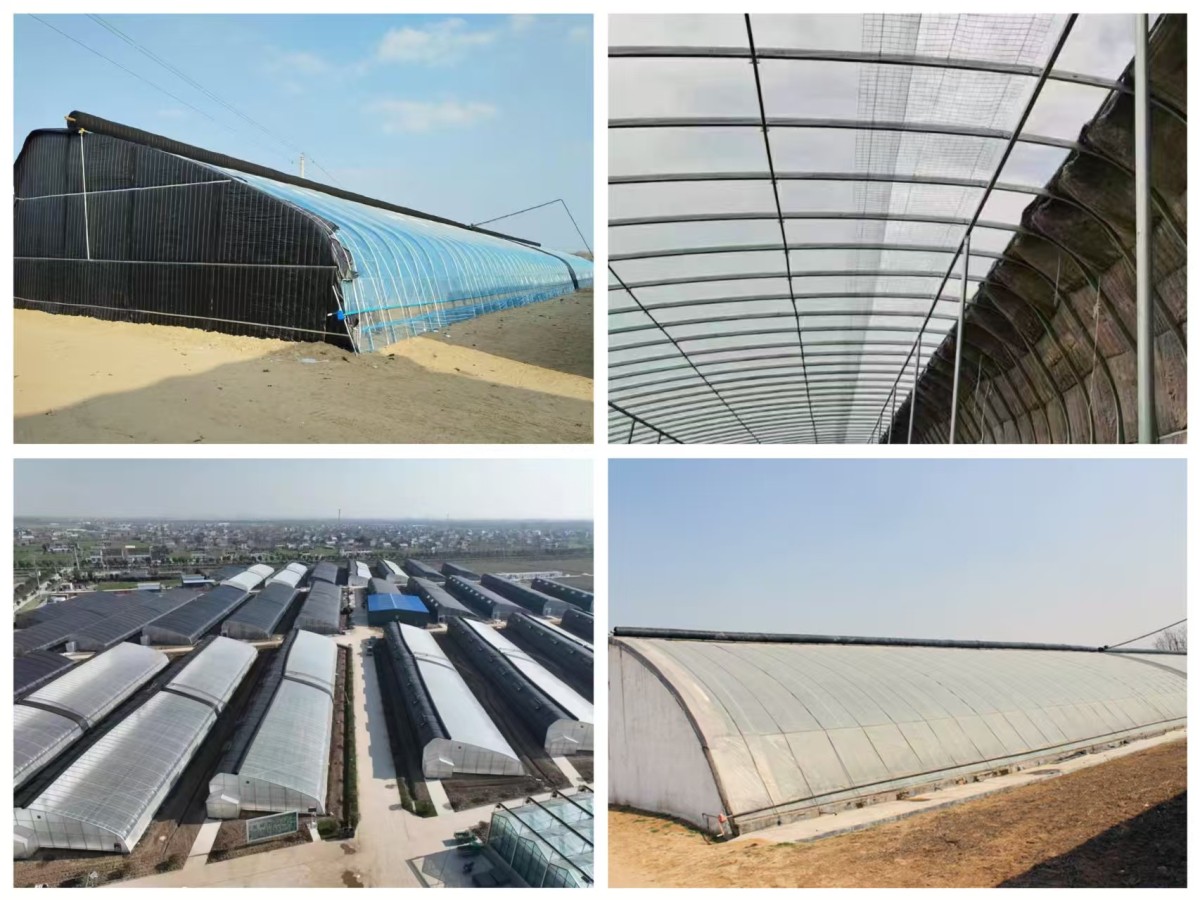

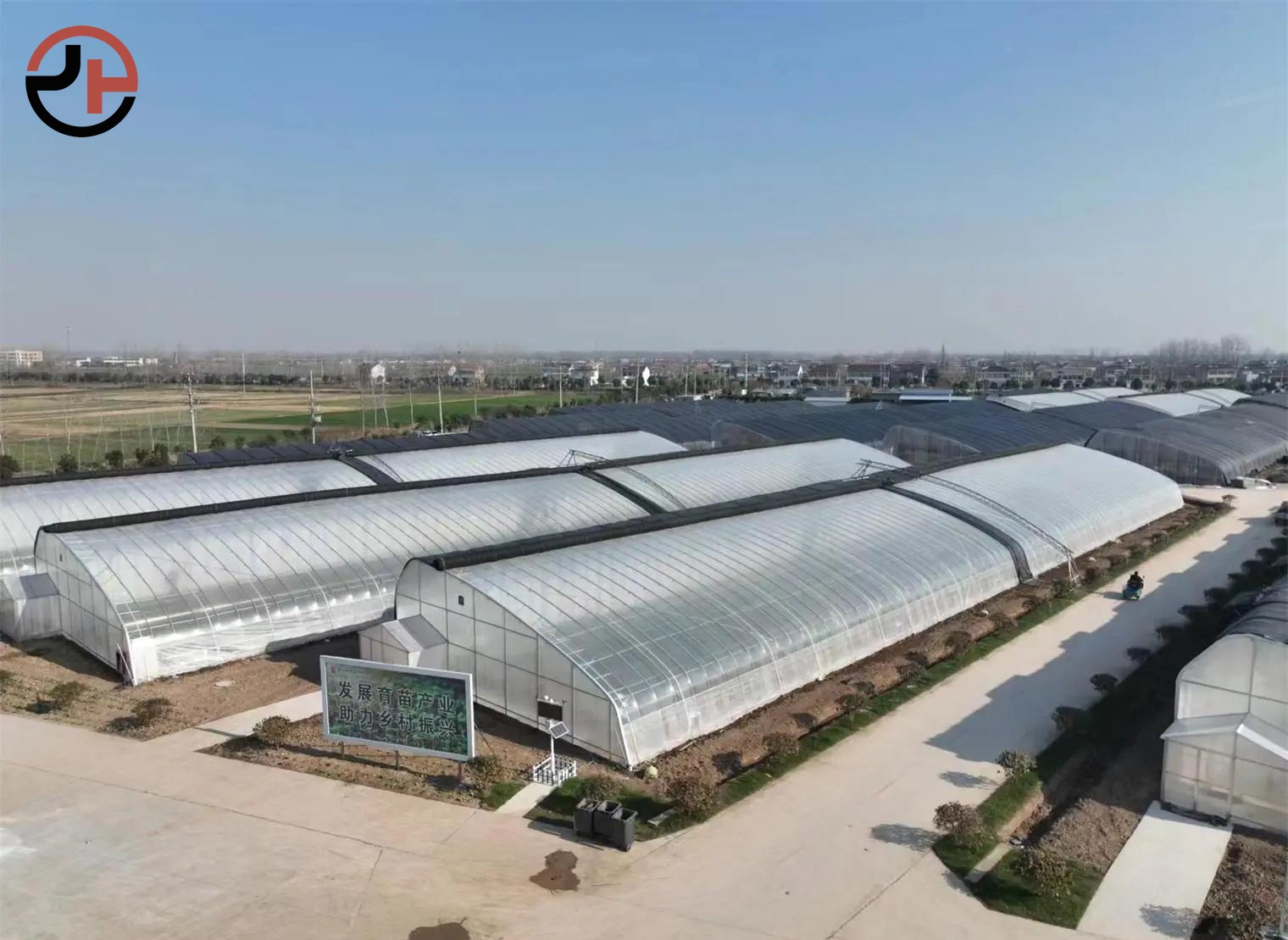

Core Structure

• Insulated Walls: The north side is the main insulated wall (0.6–1.2m thick), with gable walls on the east and west sides, preventing heat loss and forming a closed, insulated space.

• Skylight Roof: The south side has an arched/sloping roof with an angle of 30°–40° (adapted to local latitude), using a hot-dip galvanized steel pipe frame for stability and maximum light transmission.

• Covering Materials: The skylight surface uses 12–15 micron PO anti-drip film (high-end models use PC polycarbonate sheets), covered with an insulating blanket at night, and equipped with an electric rolling shutter.

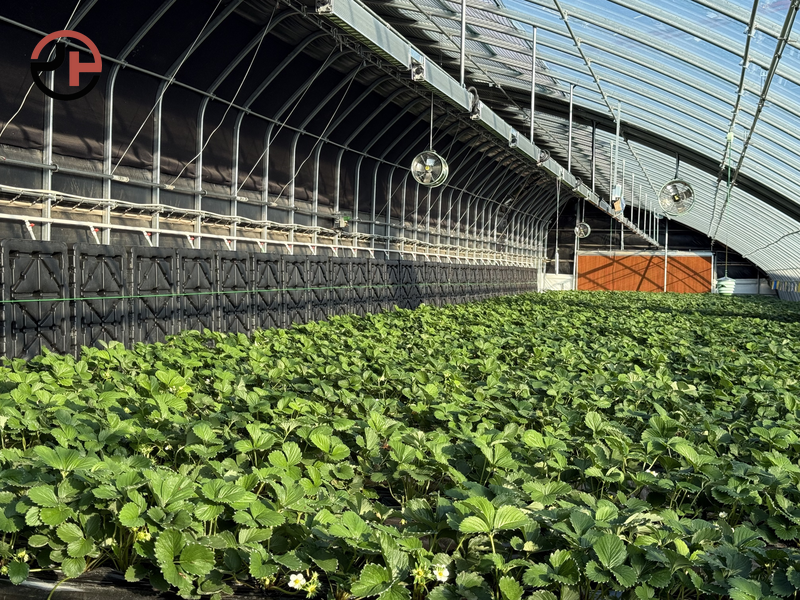

• Supporting Facilities: Standard configuration includes a rolling shutter machine, insulation blanket, and side windows; optional features include shading, integrated water and fertilizer system, and intelligent temperature control. Auxiliary heating equipment can be added in high-altitude and cold regions.

Performance Parameters (Reference)

• Span: 8–12m (common), customizable to 12–15m

• Shoulder height: 2.5–4.0m, Ridge height: 3.5–5.0m

• Skylighting roof angle: 30°–40° (suitable for northern latitudes)

• North wall thickness: 0.6–1.2m (can be thickened to 1.5m in high-altitude cold regions)

• Applicable climate: -30℃～38℃, primarily for high-altitude, cold, and low-rainfall regions in northern China

• Thermal insulation performance: Minimum nighttime temperature ≥5℃ without heating, ≥10℃ after heating in extremely cold conditions

 Applicable Scenarios

• Off-season vegetable cultivation in northern winters (cucumbers, tomatoes, etc.)

• Overwintering cultivation of fruits and vegetables (strawberries, watermelons, etc.)

• Overwintering cultivation of high-value flowers (orchids, roses, etc.)

• Overwintering cultivation of medicinal herbs and seedlings

• Year-round planting and cold-wea
