Product Description

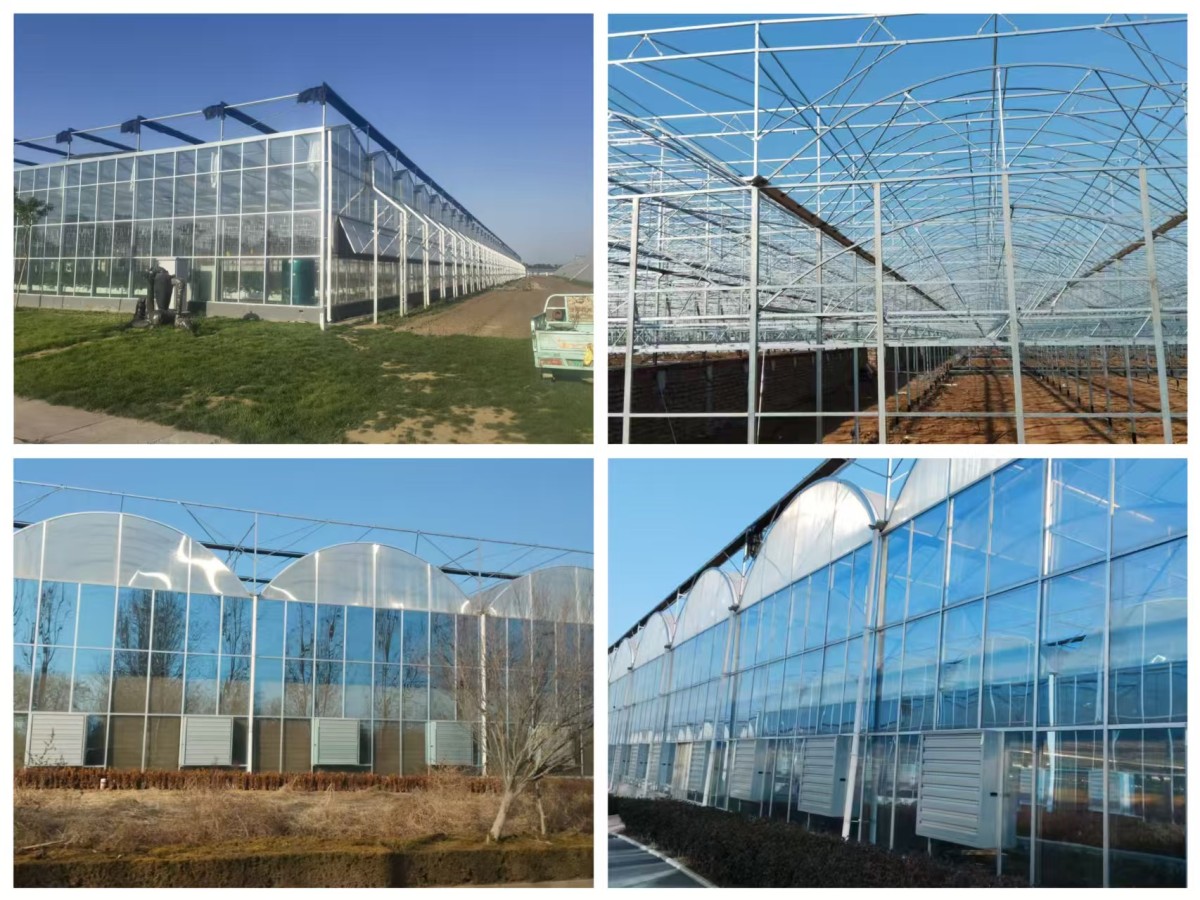

Venlo Glass Multi-Span Greenhouse
Venlo glass multi-span greenhouse adopts classic Venlo roof design, which is widely recognized as the standard commercial greenhouse structure worldwide. The whole frame is made of heavy-duty hot-dip galvanized steel, anti-rust and anti-corrosion, service life more than 20 years. Adopt 4mm / 5mm tempered clear glass as covering material, light transmittance up to 92%, no deformation, anti-hail and strong wind resistance.
This glass greenhouse can be equipped with complete supporting systems: Automatic roof ventilation system, side ventilation system, external sunshade, internal shading, cooling pad and exhaust fan, heating system, drip irrigation and intelligent temperature and humidity control system.
It has the advantages of large internal space, uniform lighting, good thermal insulation and stable structure. Widely used in commercial vegetable planting, flower greenhouse, seedling nursery, botanical garden and agricultural project investment.
We provide customized span, bay, eave height and full set of design solutions according to local wind load and snow load standard.
- Structure Type: Venlo Glass Multi-span Greenhouse
- · Span: 9.6m / 12.0m
- · Bay: 4.0m / 5.0m
- · Eave Height: 4.0m–6.0m
- · Covering Material: 4mm / 5mm Tempered Glass
- · Frame Material: Hot Dip Galvanized Steel
- · Wind Load: 0.4–0.6 kN/㎡
- · Snow Load: 0.3–0.5 kN/㎡
- · Lifetime: 20+ Years
- · Application: Vegetable, Flower, Seedling, Agriculture Project
